End Glow Cable

  • LC End Glow Cable
  • LC End Glow Cable
  • LC End Glow Cable
LC End Glow CableLC End Glow CableLC End Glow Cable

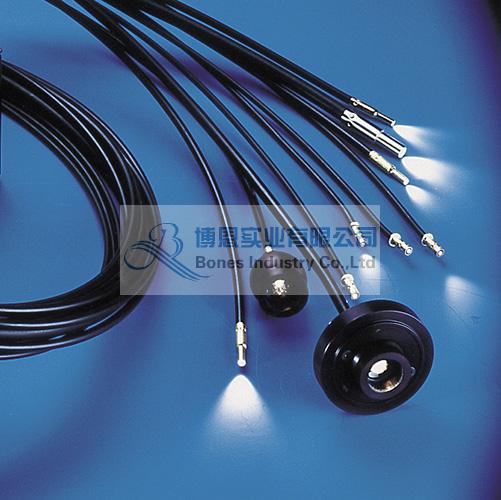

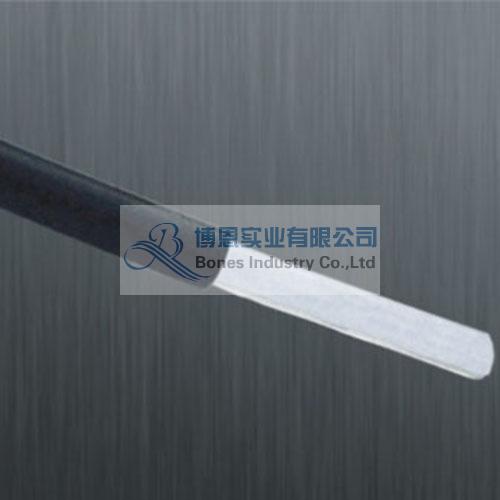

LC End Glow Cable

  • Core Diameter:1.0mm
  • Cable Diameter:2.2mm
  • Jacket Material:Black PE
  • Operating Temperature:-20~+70℃
  • Product description: Our LC end glow emitting fiber optic lighting cable consists of one or multi-strand 0.75mm or 1.0mm PMMA polymer fibre core surrounded by a UV stablized protective PE or PVC sheathing for mechanical p
  • INQUIRY

PMMA Fiber Optic, also known as Plastic optical fiber (POF) ,Polymer Optical Fibre, is an optical fiber that is made of polymer. Similar to glass optical fiber, POF transmits light (for fiber optic lighting or data transmission) through the fiber core. Compared with traditional fiber optics , PMMA fiber optic has better bending radius and stretching.

Our end glow fiber optic lighting cable mainly divided into 3 types: LC series single core end glow cable,LCV series multi-strand end glow cable,GET series solid core end glow cable. All these end glow fiber optic lighting cable consists of one or multi-strand PMMA polymer fibre core surrounded by a UV stablized protective PE or PVC sheathing for mechanical protection.

End Glow Cable Characteristics:

1. Safe, transmit light only, no conductivity or heat transferring;

2. Being able to transmit visible light but not ultraviolet or infrared;

3. Unique loose jacket adopted in the lighting series , easy to peel off,install and maintenance;

4. Good flexibility,stable performance, anti-aging, long life span;

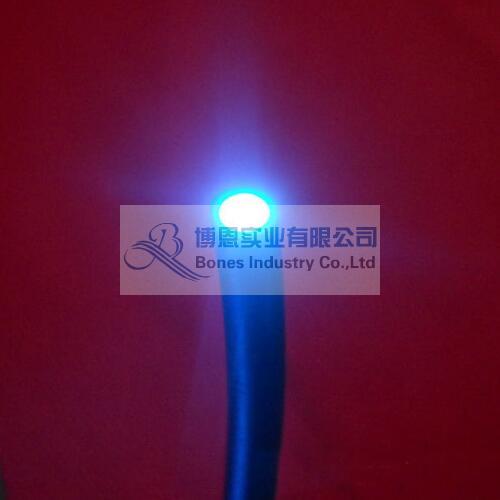

5. Strongest light effect at the end of the fiber;

6. Operating temperature: -20 ~ +70

7. Allowable bending radius:≥ ten times of the fiber diameter;

End Glow Cable Applications:

The end glow emitting cables are mainly used for fiber optic chandeliers, starry ceiling lighting, pool & spa lighting, stage lighting, holiday lighting etc. For all occasions. They are widely used in home,garden,hotels, nightclubs, municipal square, pools, caves, and any other places you want.

End Glow Cable Ordering Information:

P/N

Core Diameter

(mm)

Cable Diameter

(mm)

Roll Length

(m)

Jacket Sheath

LC-500

0.5

1.0±0.05

1000

Black PE or PVC

LC-750A

0.75

1.6±0.1

2700

LC-750

0.75

2.2±0.1

2700

LC-1000A

1.0

1.8±0.1

1500

LC-1000

1.0

2.2±0.1

1500

LC-1500

1.5

2.5±0.25

700

LC-2000

2.0

3.0±0.3

350

LC-2500

2.5

3.5±0.35

250

LC-3000

3.0

4.0±0.4

150

LC2-500

0.5

1.0±0.05

1000

LC2-750A

0.75

1.6±0.1

2700

LC2-750

0.75

2.2±0.1

2700

LC2-1000A

1.0

1.8±0.1

1500

LC2-1000

1.0

2.2±0.1

1500

LC2-1500

1.5

2.5±0.25

700
