End Glow Fiber

  • 0.75mm PMMA Fiber spool
  • 0.75mm PMMA Fiber spool
  • 0.75mm PMMA Fiber spool
  • 0.75mm PMMA Fiber spool
0.75mm PMMA Fiber spool0.75mm PMMA Fiber spool0.75mm PMMA Fiber spool0.75mm PMMA Fiber spool

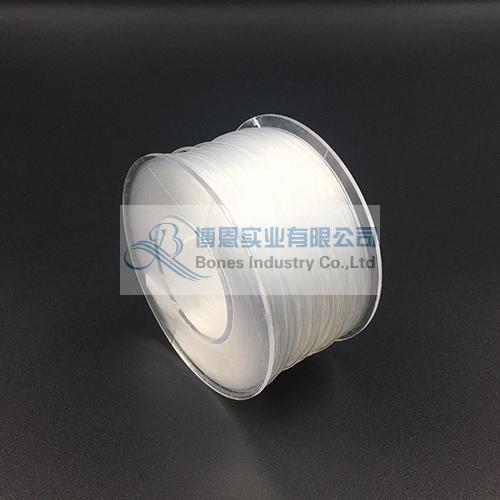

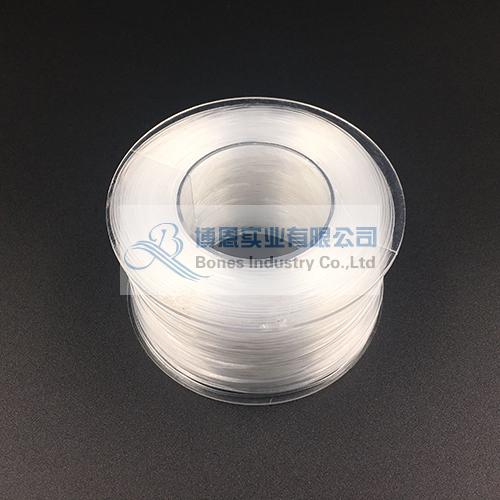

0.75mm PMMA Fiber spool

  • Core Material:PMMA
  • Type: end glow fiber
  • Core Diameter:0.75mm
  • Spool Length:200m
  • Product description: 0.75mm end glow emitting PMMA plastic optical fiber-unjacketed bare fiber sold by 200m plastic spool from China polymer optical fiber factory and supplier.
  • INQUIRY

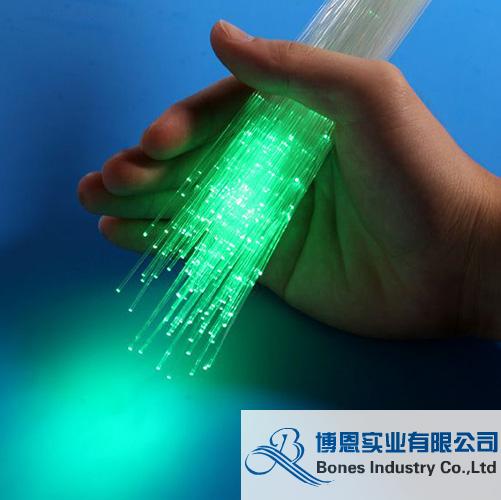

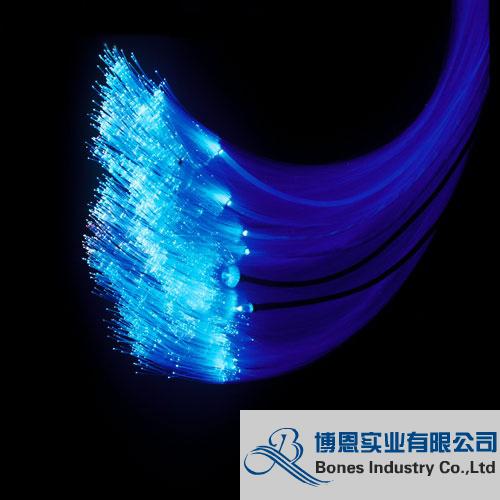

PMMA Fiber Optic, also known as Plastic optical fiber (POF) ,Polymer Optical Fibre, is an optical fiber that is made of polymer. Similar to glass optical fiber, POF transmits light (for fiber optic lighting or data transmission) through the fiber core. Compared with traditional fiber optics , PMMA fiber optic has better bending radius and stretching. Our LF series end glow PMMA Fiber diameter ranges from 0.25mm to 3.0mm.

PMMA Plastic Optical Fiber Spool Characteristics:

1. Small in size;

2. More cost-effective;

3. Easy installation and maintenance;

4. Good flexibility,stable performance, anti-aging, long life span;

5. Strongest light effect at the end of the fiber;

6. Operating temperature: -20 ~ +70

7. Allowable bending radius:≥ ten times of the fiber diameter;

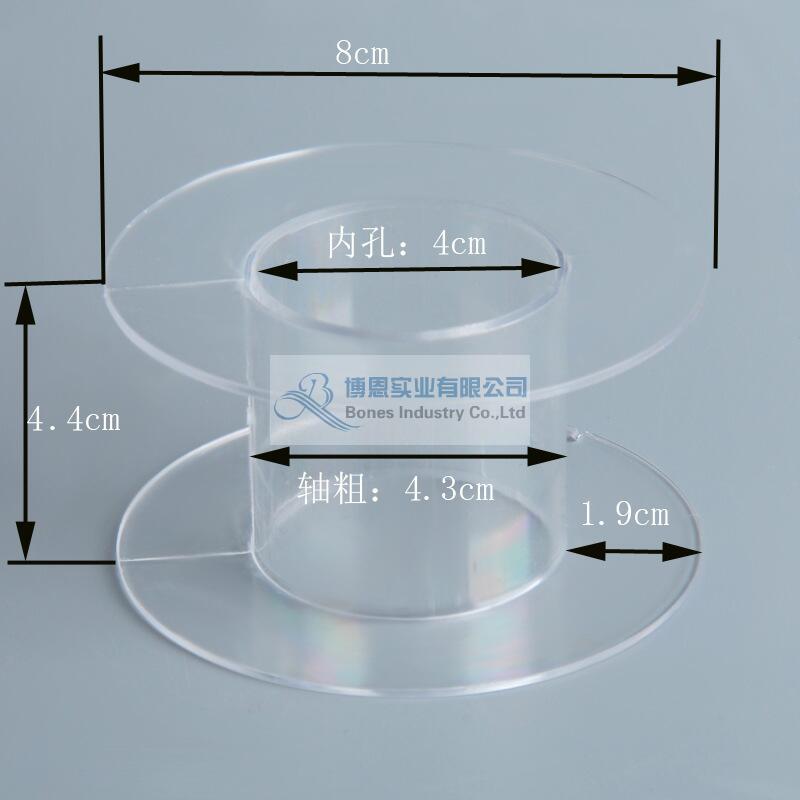

PMMA Plastic Optical Fiber Spool Dimension:

PMMA Plastic Optical Fiber spool

PMMA Plastic Optical Fiber sold by 100m spool

PMMA Plastic Optical Fiber Spool Ordering Information:

Part Number

Fiber Diameter

Spool Length

Attenuation

Application

(mm)

(M)

(dB/M@650nm)

LF-250

0.25

1800

≤0.35

Commercial Lighting

LF-500

0.50

400

≤0.30

LF-750

0.75

200

≤0.25

LF-1000

1.00

100

≤0.25

Part Number

Fiber Diameter

Spool Length

Attenuation

Application

(mm)

(M)

(dB/M@650nm)

LF2-750

0.75

200

≤0.20

1. Commercial Lighting

2. Consumer Electronics

3. Fiber Optic Sensor

LF2-1000

1.00

100

≤0.20

Part Number

Fiber Diameter

Spool Length

Attenuation

Application

(mm)

(M)

(dB/M@650nm)

CF2-500

0.50

400

≤0.20

1.Consumer Electronics

2. Fiber Optic Sensor

3. Industrial Control

4. Medical Imaging

CF2-750

0.75

200

≤0.18

CF2-1000

1.00

100

≤0.18
