Side Sparkle Cable

  • 3x0.75mm Sensory Cable
  • 3x0.75mm Sensory Cable
  • 3x0.75mm Sensory Cable
  • 3x0.75mm Sensory Cable
3x0.75mm Sensory Cable3x0.75mm Sensory Cable3x0.75mm Sensory Cable3x0.75mm Sensory Cable

3x0.75mm Sensory Cable

  • Core Material: PMMA
  • Core Diameter:0.75mm
  • Spool Length:2700m
  • Dot Distance: 15, 30, 40mm or customized
  • Product description: 3strands 0.75mm side emitting sparkle PMMA fiber optic lighting cable factory and supplier offering single core sparkle fiber and multi-core strande side emitting sparkle fiber optic lighting cable.
  • INQUIRY

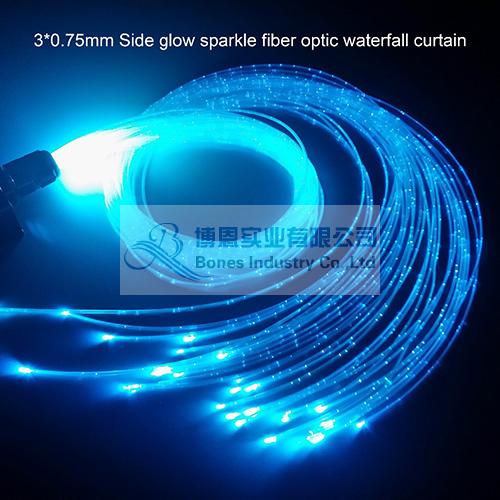

Side light sparkle fiber optic cable is an innovating fiber optic lighting product that uses side light sparkle fiber to achieve brilliant and distinctive sparkling effect without any noticeable reduction in the intensity of the light throughout entire length of PMMA fiber optic.

Its revolutionary design uses advanced LASER technology to cut the fibers along its length in regular distance(15mm, 30mm, 40mm)during the manufacturing process which results in an amazing ‘sparkle’ effect once the fiber is illuminated.

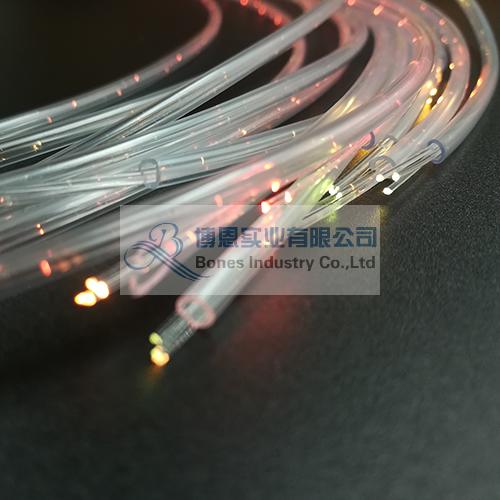

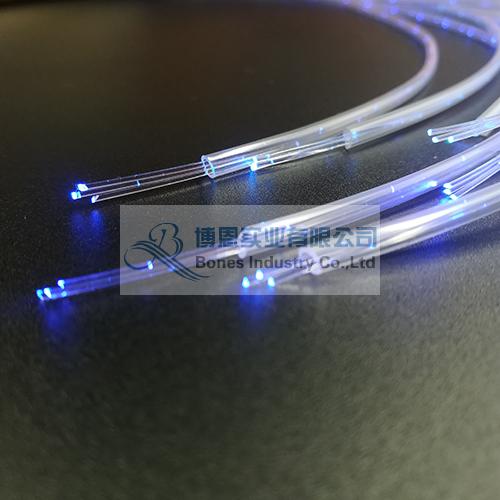

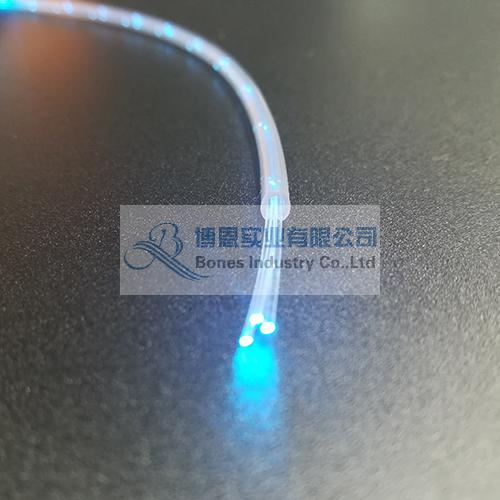

Each cable consists of single or multiple strands of 0.75mm side light sparkle fiber within a transparent PVC jacket to create fiber tail bundles in a variety of diameters for different type of sparkling effects. This side glow sparkle cable is suitable for both interior and exterior applications because the protective jacket is UV stabilized.

Structure:

Typical Applications:

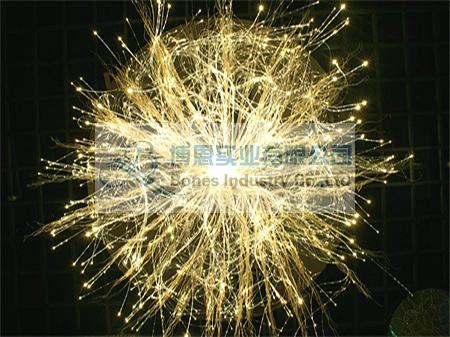

• Chandeliers
• Lighting curtains/screens

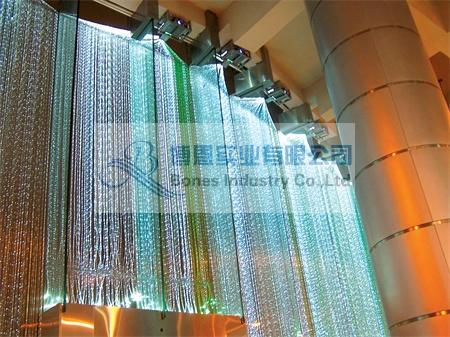

• Window displays
• Feature lighting


Ordering Information:

Item

Part Number

Fiber Strands*Dia

Cable Dia.

(mm)

Spool Length

(m)

Remark

Side Light

Sparkle Fiber

SF-750

1*0.75mm

N/A

2700

Bare Fiber

SF-1000

1*1.0mm

N/A

1500

Side Light

Sparkle Cable

SCV-750-1

1*0.75mm

1.6

2700

Sheathed with UV stabilized clear PVC jacket

SCV-750-3

3*0.75mm

3.0

450

SCV-750-4

4*0.75mm

3.5

450

SCV-750-7

7*0.75mm

4.0

450

SCV2-750-1

1*0.75mm

1.6

2700

SCV2-750-3

3*0.75mm

3.0

450

SCV2-750-4

4*0.75mm

3.5

450

SCV2-750-7

7*0.75mm

4.0

450

Note:

1. Regular dot marking distance: 15, 30, 40mm or customized;

2. Fiber strands can also be customized;
